WACV 2024 University of Zurich

SViTRevisiting Token Pruning for
Object Detection and Instance Segmentation

Robotics and Perception Group, University of Zurich

PaperCodearXivVideoCite

Selective computation. Dense predictions.

01 Input image
The complete baseball scene, with a batter, catcher, and umpire.
02 Token usage
Token usage heatmap of the same three people; brighter tokens are processed by more layers.
03 Detection & segmentation
SViT predictions for all three people and the baseball equipment.

Computation follows the objects, down to their contours. Token usage counts the Transformer layers that process each token, not a binary keep/drop mask.

Published visualizations: Figures 1 & 4. Each row shows the same complete scene.

34%

Faster whole-network inference

46%

Faster backbone inference

0.3 AP

Drop in both box and mask AP

Reported gains for SViT-S vs. dense DeiT-S in ViT-Adapter + Mask R-CNN. COCO 2017; NVIDIA A100; batch size 1.

The method

Prune computation,
not information.

Dense prediction needs a feature at every location. Instead of discarding pruned tokens, SViT preserves their features and lets later layers reactivate them.

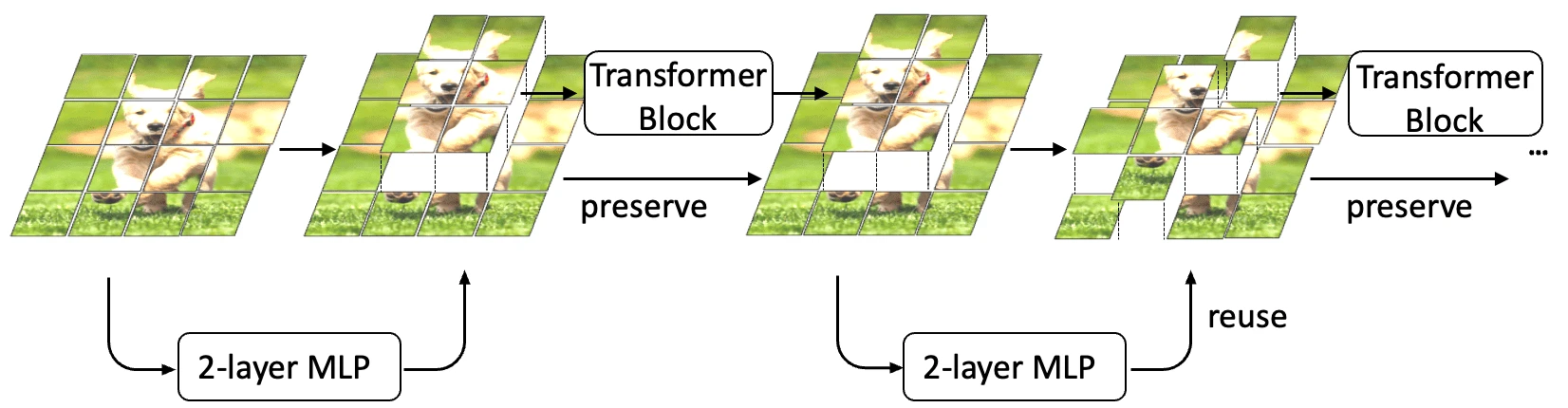

A two-layer MLP selects tokens before each Transformer block. Unselected tokens bypass the block, preserve their features, and may be selected again later.
Selected tokens are gathered, processed, and scattered back into the dense feature map. Unselected tokens keep their previously computed features.
01

Preserve

Keep pruned tokens in the feature map so the detection head can still use them.

02

Reactivate

A token skipped by one block can return in a later block, recovering useful detail.

03

Adapt

Allocate more tokens to complex images and fewer to simple images.

04

Keep it simple

A lightweight, two-layer MLP is sufficient to make the selection.

Inside token pruning

Skipped now.
Useful again later.

Pruning does not have to be permanent. SViT can reactivate previously skipped tokens when later layers need them.

Input image
Two football players and a ball in the original scene.
Pruning & reactivation
The same football scene with active image tokens, cyan tokens that will reactivate, and white tokens that will not.
  • Image patches: active tokens
  • Cyan: pruned, reactivated later
  • White: pruned, not reactivated later

Actual model visualizations from Figure 5b. These are distinct from the cumulative token-usage heatmaps above.

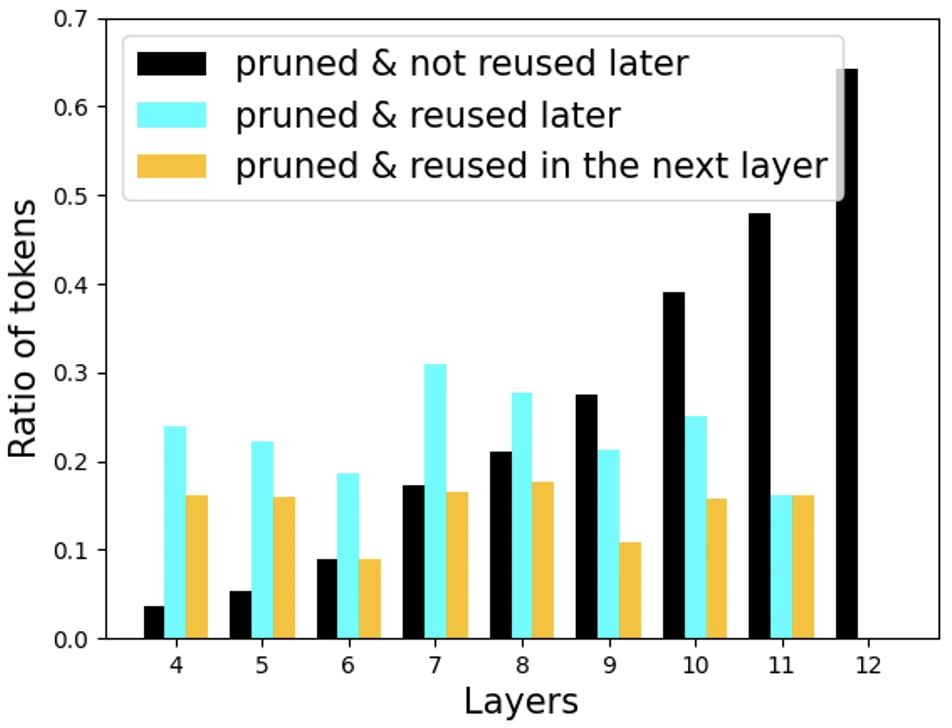

Layer-wise reactivation on COCO
Figure 5a: ratios of pruned tokens reused in later layers, immediately reused in the next layer, and not reused, across layers 4 to 12.

Many tokens pruned in early layers are reused later. More than half of reactivated tokens are reused in the immediately succeeding layer. Section 4.3

COCO 2017

More speed.
Nearly the same accuracy.

SViT-S retains 48.2 box AP and 42.5 mask AP, while improving whole-network throughput from 11.70 to 15.75 images per second.

Small models in ViT-Adapter + Mask R-CNN
Backbone Box AP ↑ Mask AP ↑ Network FPS ↑ Backbone FPS ↑
DeiT dense 48.5 42.8 11.70 14.20
EViT 47.1 41.6 15.34 20.01
EvoViT 47.2 41.6 15.48 20.26
ATS 46.7 41.1 11.63 14.24
DynamicViT Training did not converge
DynamicViT + preserve 47.2 41.6 15.66 20.79
SViT ours 48.2 42.5 15.75 20.78

Source: Table 5. Single NVIDIA A100, batch size 1. FPS is measured throughput, not FLOPs or an estimated speedup.

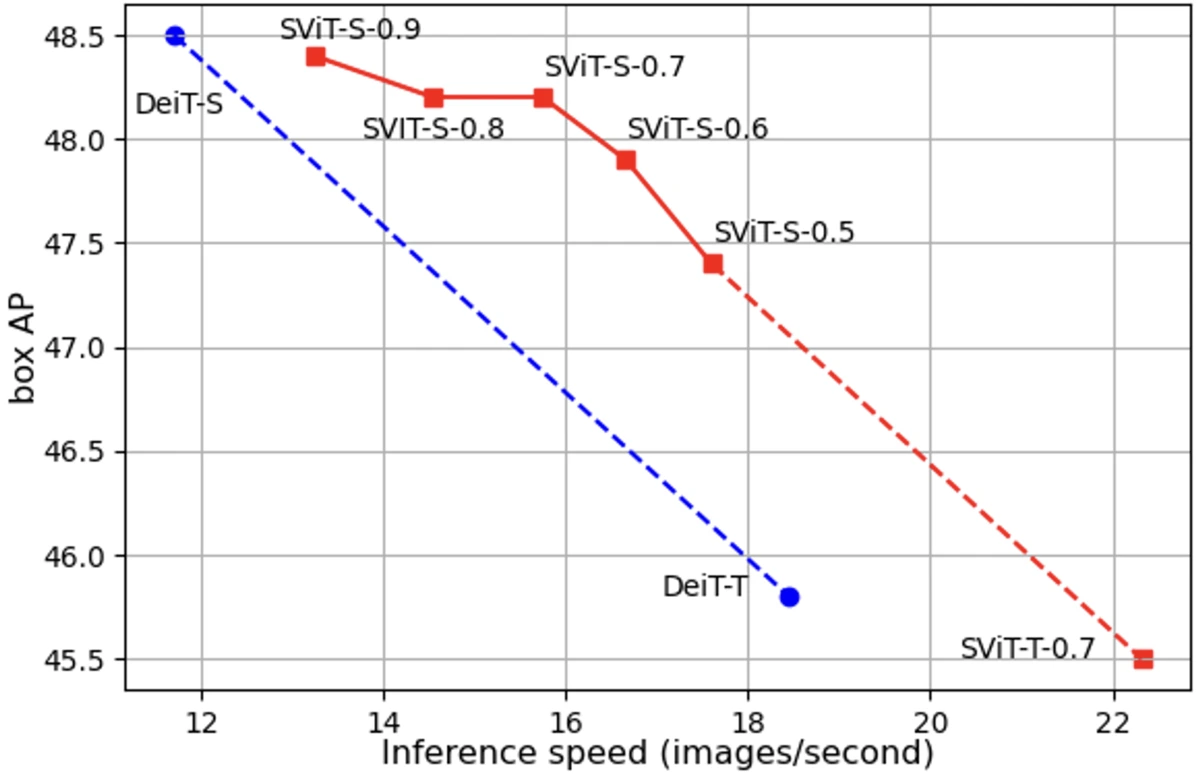

Published speed-accuracy plot: SViT variants outperform the dense DeiT speed-accuracy trade-off across several keeping ratios.
Speed-accuracy trade-off across pruning rates. Figure 7.

A better trade-off,
not free computation.

SViT consistently improves the speed-accuracy trade-off in these experiments. More aggressive pruning still reduces accuracy, especially when very few tokens remain in the last blocks.

This study focuses on isotropic ViT backbones for object detection and instance segmentation, not pyramidal transformers.

Presentation

Watch on YouTube

Watch on YouTube

Open research

Paper, code & models.

Read

WACV 2024 paper Supplementary material arXiv:2306.07050

Reproduce

Official code Checkpoints & training logs Token-pruning visualization code

Citation

@InProceedings{Liu_2024_WACV,
  author    = {Liu, Yifei and Gehrig, Mathias and Messikommer, Nico and Cannici, Marco and Scaramuzza, Davide},
  title     = {Revisiting Token Pruning for Object Detection and Instance Segmentation},
  booktitle = {Proceedings of the IEEE/CVF Winter Conference on Applications of Computer Vision (WACV)},
  month     = {January},
  year      = {2024},
  pages     = {2658-2668}
}
